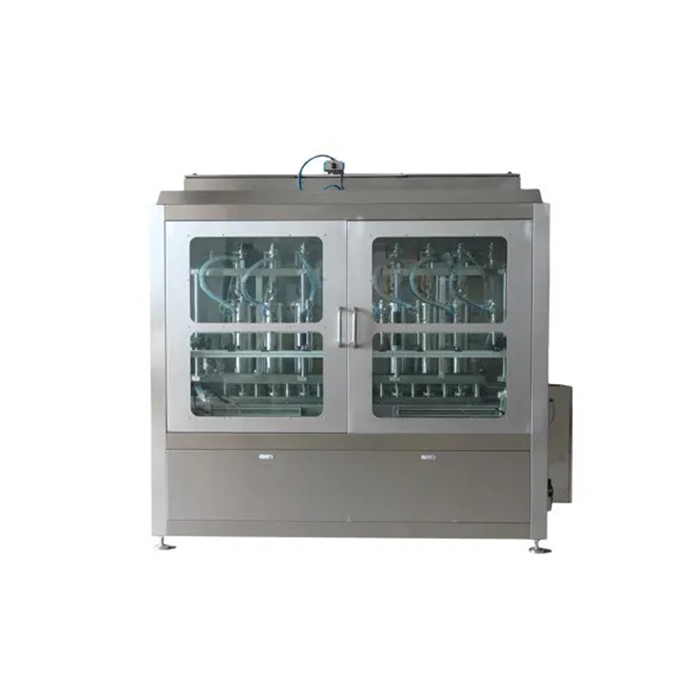

Automatic PET Bottle Filling Machine

makinë tre-në-një për shishen PET integron funksionin e shpëlarjes, mbushjes dhe mbulimit së bashku. Bazuar në teknologjinë e përparuar jashtë shtetit, dhe të dizajnuara sipas kërkesave të përpunimit të mbushjes së ujit

Karakteristikat kryesore


1. This machine has a compact structure, completed control system, easy to operate and highly automated.

2. By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.

3. The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.

4. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

5. The machine adopts high effective cap sorting system and completely self control and protective device.

6. The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.

7. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

8. The electric components and pneumatic components are all introduced from world famous brand products.

Shuma e pozicionit të punësShpëlarja 32, mbushja 32, mbulimi 10
Kapaciteti i prodhimit15000BPH (500ml)
Presioni i burimit të ajrit0.7Mpa
Konsumi i ajrit1.2m3 / min
Shpëlarja e presionit të ujit0.2-0.25Mpa
Kapaciteti i ujit për shpëlarje2.5T / H
Fuqia kryesore e motorit3.2kW
Fuqia totale4.8kw
dimension4250X2150X2200mm (L × W × H)
peshë5200kg

Ne gjithashtu sigurojmë bimën e plotë automatike të mbushjes së ujit të pastër

Përfshin 4 pjesë kryesore:

1. Plastic bottle blow molding machine
2. Water cleaning system
3. Water washing, filling, capping machine.
4. Conveyor system, labeling machine, dating machine, film wrapping machine

Përshkrimi i plotë i linjës së plotë:


1. The plant can produce different volume bottles, from 200ml to 2000ml bottles, round and square bottles, plastic and glass bottles. It is very easy to change the different bottle molds.

2. The plant is highly automatic, you can operate on the touch screen to adjust the machine speed and working.

3. We have different speed plants, commonly, 2000BPH, 4000BPH, 7000BPH, 10,000BPH, 15000BPH..ect.

4. The material is stainless steel 304, food grade much clean and safe.

5.  We provide the engineers for customer installation, training in customer's factory.

Modelet dhe Lista e Shpejtësisë


modelXGF8-8-3XGF14 / 12/5XGF16 / 16/5XGF24 / 24/8XGF32 / 32/10
Larja e duarve814162432
Mbushja e valvulave812162432
Kapja e duarve355810
Shishe PET / qelqi të përshtatshme (150 ml deri 2000ml)
Kapaciteti (Speed)
Baza në 500ml
2000BPH5000BPH7000BPH12000BPH15000BPH

Komponentet Elektrike Elektrike Furnizuesi


Përbërja kryesoreFurnizuesi i përshkrimit
PLCMitsubishi (Japoni), Siemens (Gjermani)
Ekrani me prekjeWeinview (Taiwan)
Konvertuesi i frekuencësMitsubishi (Japoni), Siemens (Gjermani)
Ndërprerësi i ajritSchneider (Francë)
shkelësSiemens (Gjermani)
contactorSiemens (Gjermani)
Ndërprerësi fotoelektrikOmron (Japoni)

Detaje të shpejta


Lloji: Makinë mbushëse
Gjendja: New
Aplikimi: Pije, kimike, mjekësore
Lloji i paketimit: Shishe
Materiali i paketimit: plastik
Nota automatike: Automatike
Lloji i drejtuar: Elektrike
Tensioni: 380V / 220V
Fuqia: 4.8KW
Vendi i origjinës: Shanghai, Kinë (kontinent)
Emri i markës: NPACK
Dimensioni (L * W * H): 4250X2150X2200mm
Pesha: 5200KGS
Certifikimi: CE, ISO, SGS
Shërbimi pas shitjes i ofruar: Inxhinierë të disponueshëm për makineri shërbimi jashtë shtetit
Fabrika: LIDHJE MAKINERIA
Madhësia e shisheve: 150ml deri 2000ml
Diametri i Qafës së Shisheve: 15-55 mm
Materiali i shisheve: plastike / qelqi
Shpejtësia (bazë në shishe 500ml): 15000B / H
Sistemi i kontrollit: PLC Touch Screen (MITSUBISHI JAPAN)
Kapak: Vidhos / Kapak shtypi
Ashensor kapaku: Keni
Mbushja e Lëngut: Ujë mineral / i Pastër
